TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials

TG-14D EMAT Metal or Magnetic Materials Electromagnetic Ultrasonic Thickness Gauge

TG-14D electromagnetic EMAT ultrasonic thickness gauge is a new developed thickness gauge,ultra small, non-contact measurement, that does not require acoustic coupling agents. It can measure the thickness of metal or magnetic materials.

Product Features

• Mini size and easy to carry.
• The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement.
• It is insensitive to the coating and can realize the thickness measurement of coated workpiece.
• No acoustic coupling agent is required, it is suitable for thickness measurement of high-temperature workpiece.

• Basic Parameters

  Sampling rate	80MSPS
  Bandwidth	2.5MHz～6MHz
  Launch	± 600V_400Hz_125ns
  Gain	Automatic 0～96dB, pace 1dB
  Measurement accuracy	±0.01mm
  Sound velocity range	400～9999 m/s
  Effective range	1.0～320mm
  Average level	L, M, H three-level adjustable
  Lifting distance	4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)
  Min Radius of Curvature	8mm
  Measurement type	Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials
  Measurement mode	Single echo(I-E), Dual echo(E-E)
  Auxiliary functions	Auto freeze, Auto gain, Auto sleep, Metric and British switching, Sound velocity saving, Backlight adjustment
  Revised function	sound velocity calibration, high temperature compensation
  Communication Interface	RS-485 or USB2.0
  Charger	5V2A, Standard Type-C interface
  Display screen	1.47 inch 320×172 IPS_LCD
  Dimension	178.4mm×42mm×32mm
  Battery life	3.7V 3400mAh Lithium battery, 6 hours of battery life
  Bare weight	A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g

  Standard Configurations

  Serial number	Name	Quantity	Remark
  1	Host	1
  2	Normal temperature probe	1	4MHz,Φ42mm*32mm
  3	Charging data cable	1
  4	Charging plug	1
  5	Manual &calibration certificate	1
  6	Iron based test block	1
  7	Aluminum based test block	1
  8	Packing box	1

  Optional Configuration(You can choose to order according to your needs, which is not included in the standard configuration)

  Serial number	Name	Quantity	Remark
  1	High temperature probe	1	4MHz,Φ33mm*40mm
  2	Small diameter normal temperature probe	1	4MHz,Φ13mm*36mm
  3	Large diameter normal temperature probe	1	4MHz,Φ40mm*60mm



EMAT ultrasonic thickness gauge

magnetic materials thickness tester

electromagnetic NDT equipment

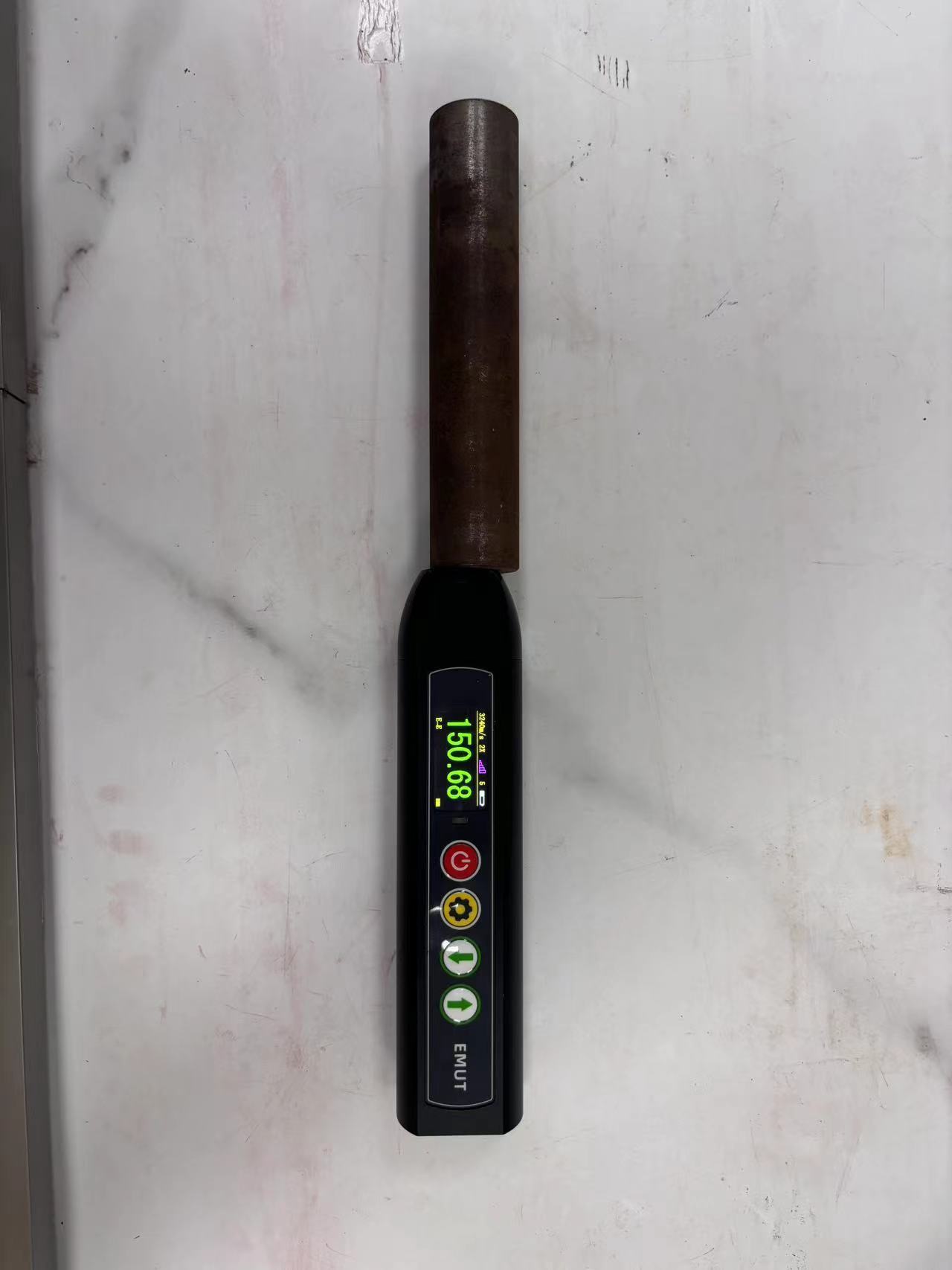

TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials Images
